</head> <body>Matthew Welland
Sept. 20,
Megatest is free software released under the General Public License v2.0. Please see the file COPYING in the source distribution for details.
Email: matt@kiatoa.com.
Web: www.kiatoa.com/fossils/megatest
This document is believed to be acurate at the time of writing but as with any opensource project the source code itself is the final arbiter of the softwares behaviour. It is the responsibility of the end user to validate that the code will perform as they expect. The author assumes no responsibility for any inaccuracies that this document may contain. In no event will Matthew Welland be liable for direct, indirect, special, exemplary, incidental, or consequential damages resulting from any defect or omission in this document, even if advised of the possibility of such damages.
This document is a snapshot in time and the Megatest software has likely been changed since publication. This document and the product that it describes may be improved at any time, without notice or obligation.
Document Revision History
Notable revisions of the software are occasionally documented here.
| Version | Author | Description | Date |
| v1.25 | matt | converted to new document format |
|
Table of Contents
1 Introduction
1.1 Megatest design philosophy
Megatest is intended to provide the minimum needed resources to make writing a suite of tests for software, design engineering or process control (via owlfs for example) without being specialized for any specific problem space. Megatest in of itself does not know what constitutes a PASS or FAIL of a test. In most cases megatest is best used in conjunction with logpro or a similar tool to parse, analyze and decide on the test outcome. A call to megatest can then be made to record the result.
1.2 Megatest architecture
All data to specify the tests and configure the system is stored in plain text files. All system state is stored in an sqlite3 database. Tests are launched using the launching system available for the distributed compute platform in use. A template script is provided which can launch jobs on local and remote Linux hosts. Currently megatest uses the network filesystem to “call home” to your master sqlite3 database.
2 Installation
2.1 Dependencies
Chicken scheme and a number of “eggs” are required for building megatest. See the file utils/installall.sh for an automated way to install the dependencies on Linux.
2.2 Build and Install
Run “make test” to create the megatest executable. You may wish to copy the executable to a centrally accessible location.
3 Setup
3.1 Create megatest.config
Create the file megatest.config using the megatest.config template from the tests directory. At a minimum you need the following:
# Fields are the keys under which your test runs are organized fields field1 TEXT field2 TEXT jobtools # The launcher launches jobs to the local or remote hosts, # the job is managed on the target host by megatest, # comment out launcher to run local only. An example launcher # "nbfake" can be found in the utils directory. launcher nbfake # The disks section specifies where the tests will be run. As you # run out of space in a partition you can add additional disks # entries. # Format is: # name /path/to/area disks disk1 /tmp
3.2 Create runconfigs.config
This file is used to set environment variables that are run specific. You can simply create an empty file to start.
# runconfigs.config
3.3 Create the tests directory and your first test
../tests
├── megatest.config
├── runconfigs.config
└── tests
└── mytest
├── main.sh
└── testconfig
3.4 Create the testconfig file for your test
setup runscript main.sh
3.5 Create your test running script, main.sh
#!/bin/bash $MT_MEGATEST -runstep mystep1 "sleep 20;echo Done" -m "mystep1 is done" $MT_MEGATEST -test-status :state COMPLETED :status PASS -m "This is a comment"
3.6 Run megatest and watch your run progress
megatest :field1 abc :field2 def :runname 2011week08.4a -runall watch megatest -list-runs % # OR use the dashboard dashboard &
4 How to Write Tests
4.1 A Simple Test with one Step
mkdir simpletest cd simpletest
4.2 Create your testconfig file
# testconfig setup runscript main.csh
4.3 Create the main.csh script
Note: Using csh is NOT recommended. Use bash, perl, ruby, zsh or anything other than csh. We use csh here because it is popular in the EDA industry for which Megatest was originally created.
#!/bin/tcsh -x # run the cpu1 simulation. # The step name is "run_simulation" # The commandline being run for this step is "runsim cpu1" # The logpro file to validate the output from the run is "runsim.logpro" $MT_MEGATEST -runstep run_simulation -logpro runsim.logpro "runsim cpu1" $MT_MEGATEST -test-status :state COMPLETED :status $?
You can now run megatest and the created test directory will contain the new files “run_simulation.html” and “run_simulation.log”. If you are using the dashboard you can click on the run and then push the “View log” button to view the log file in firefox.
4.4 Simple Test with Multiple Steps
To run multiple steps simply add them to the main.csh file. Here we add a step to test “cpu2”. The second step that tests cpu2 will only run after the step that tested “cpu1” completes.
#!/bin/tcsh -x # run the cpu1 simulation. # The step name is "run_simulation" # The commandline being run for this step is "runsim cpu1" # The logpro file to validate the output from the run is "runsim.logpro" $MT_MEGATEST -runstep run_simulation_cpu1 -logpro runsim.logpro "runsim cpu1" && \ $MT_MEGATEST -runstep run_simulation_cpu2 -logpro runsim.logpro "runsim cpu2" $MT_MEGATEST -test-status :state COMPLETED :status $?
5 Simple Test with Multiple Steps, Some in Parallel
5.1 The Makefile
A good way to run steps in parallel within a single test, especially when there are following steps, is to use the Unix Make utility. Writing Makefiles is beyond the scope of this document but here is a minimal example that will run “runsim cpu1” and “runsim cpu2” in parallel. For more information on make try “info make” at the Linux command prompt.
# Example Makefile to run two steps in parallel RTLDIR=/path/to/rtl CPUS = cpu1 cpu2 run_simulation_$(CPUS).html : $(RTLDIR)/$(CPUS) $(MT_MEGATEST) -runstep run_simulation_$(CPUS) -logpro runsim.logpro "runsim $(CPUS)
5.2 The main.csh file
#!/bin/tcsh -x # run the cpu1 and cpu2 simulations in parallel. # The -j parameter tells make how many jobs it may run in parallel make -j 2$MT_MEGATEST -test-status :state COMPLETED :status $?
6 Simple Test with Iteration
Since no jobs run after the cpu1 and cpu2 simulations in this test it is possible to use iterated mode.
6.1 Update your testconfig file for iteration
6.2 Rewrite your main.csh for iteration
#!/bin/tcsh -x# run the cpu simulation but now use the environment variable $CPU# to select what cpu to run the simulation against$MT_MEGATEST -runstep run_simulation -logpro runsim.logpro "runsim $CPU"# As of version 1.07 Megatest automatically converts a status of "0"# to "PASS", any other number to "FAIL" and directly uses the value of# a string passed in.$MT_MEGATEST -test-status :state COMPLETED :status $?
6.3 Tests with Inter-test dependencies
Sometimes a test depends on the output from a previous test or it may not make sense to run a test is another test does not complete with status “PASS”. In either of these scenarios you can use the “waiton” keyword in your testconfig file to indicate that this test must wait on one or more tests to complete before being launched. In this example there is no point in running the “system” test if the “cpu” and “mem” tests either do not complete or complete but with status “FAIL”.
# testconfig for the "system" testrunscript main.cshwaiton cpu mem

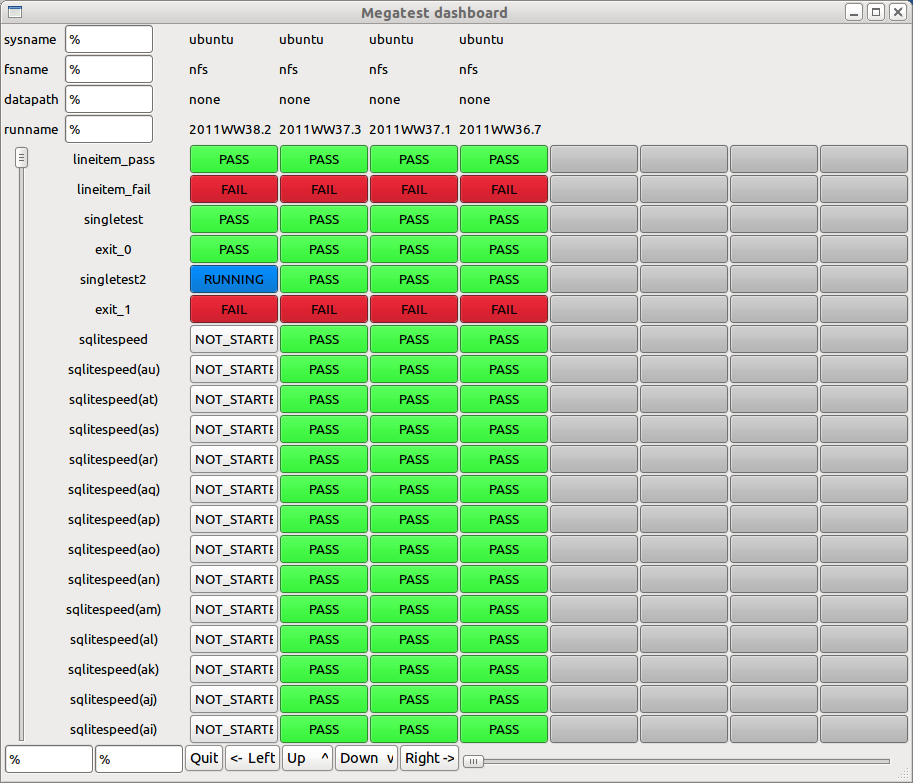

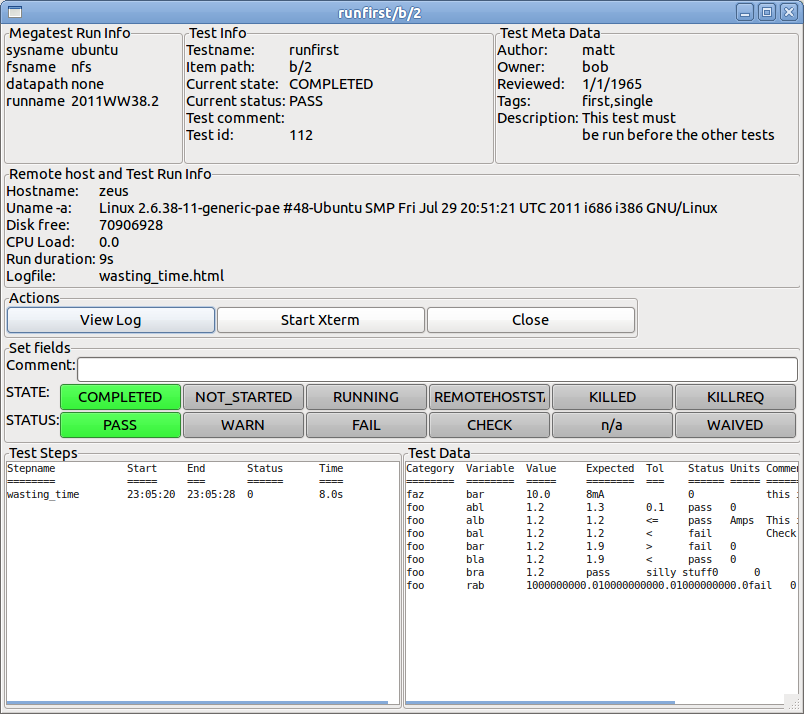

7 Dashboard
8 Reference
8.1 Configuration file Syntax
8.1.1 Sections
This creates a section named “section name”
8.1.2 Variables
VARX has this value
The variable “VARX” will have the value “has this value”
8.1.3 Includes
The file named “filename” will be included as if part of the calling file. NOTE: This means no section can be named “include “ (with the whitespace).
8.1.4 Setting a variable by running a command
VARNAME system ls /tmp
The variable “VARNAME” will get a value created by the Unix command “ls /tmp”. All lines of output from the command will be joined with a space.
8.1.5 Notes
- Some variables are infered as lists. Each token on the line separated by whitespace will be member of the list.
- Comments (lines starting with #) and blank lines are ignored.
8.2 Environment variables
| Variable | Purpose |
| MT_CMDINFO | Conveys test variables to the megatest test runner. |
| MT_TEST_RUN_DIR | Directory assigned by megatest for the test to run. |
| MT_TEST_NAME | Name of the test, corrosponds to the directory name under tests. |
| MT_ITEM_INFO | Iterated tests will set this to a sequence of key/values ((KEY val) ...) |
| MT_RUN_AREA_HOME | Directory where megatest was launched from and where the tests code can be found |
| MT_RUNNAME | Name of this run as set by the :runname parameter |
| MT_MEGATEST | Path/Filename to megatest executable. Found either from called path or but using the “exectuable” keyword in the setup section. |
| <field1> .... | The field values as set on the megatest -runall command line (e.g. :field1 abc) |
8.3 megatest.config
| section | variable | value | required | comment |
| setup | max_concurrent_jobs | if variable is not defined no limit on jobs | no | |
| executable | full path to megatest binary | no | Use only if necessary, megatest will extract the location from where it used to launch and add append that to the PATH for test runs. | |
| runsdir | full path to where the link tree to all runs will be created | no | Because your runs may be spread out over several disk partitions a central link tree is created to make finding all the runs easy. | |
| fields | string of letters, numbers and underscore | string of letters, numbers and underscore | at least one | |
| jobtools | launcher | command line used to launch jobs - the job command (megatest -execute) will be appended to this | no | |
| workhosts | list of hostnames to run jobs on NOT SUPPORTED RIGHT NOW | n/a | ||
| env-override | string of letters, numbers and underscore | any string | no | These are set on the test launching machine, not the test running machine. Typical usage is to control the host or run queue for launching tests. These values will not be seen by the test when it runs. |
| disks | string of letters, numbers and underscore | a valid path writable by the test launching process and by the test process | yes | The disk usage balancing algorithm is to choose the disk with the least space for each test run. |
8.4 runconfigs.config file
| section | variable | value | required? | comment |
| default | string of letters, numbers and underscore | any | no | variables set in this section will be available for all runs, defining the same variable in another section will override the value from the default section |
| field1value/field2value... | string of letters, numbers and underscore | any | no | the values in this section will be set for any run where field1 is field1value, field2 is field2value and fieldN is fieldNvalue. |
Example: a test suite that checks that a piece of software works correctly for different customer configurations and locations each of which is done as a separate release regression run. The fields, CUSTOMER and LOCATION were chosen. The following runconfigs.config file would set some variables specific to runs for megacorp in India and femtocorp in the Cook Islands and New Zealand:
# runconfigs.config default ENCRYTION true megacorp/india TESTPATH /nfs/testing/megacorp_runs femtocorp/cook_islands ENCRYTION false TESTPATH /afs/kiatoa/testing/cook_islands femtocorp/new_zealand TESTPATH /afs/kiatoa/testing/new_zealand megacorp/new_zealand TESTPATH /nfs/testing/megacorp_runs
megatest :CUSTOMER megacorp :LOCATION new_zealand :runname week12_2011_run1 -runall
ENCRYPTION true
TESTPATH /nfs/testing/megacorp_runs
8.5 Writing tests
8.5.1 testconfig file
| section | variable | value | required? | comments |
| setup | runscript | name of script to execute for this test | yes | The script must be executable and either provide the full path or put a copy at the top of your test directory |
| requirements | waiton | list of valid test names | no | This test will not run until the named tests are state completed and status PASS |
| items | any valid | list of values | no | The test will be repeated once for each item with the variable name set to the value. If there is more than one variable then the test will be run against all unique combinations of the values |
8.5.2 Command line
| switch or param | parameter | purpose | comments |
| -h | brief help | ||
| -runall | run all tests | ||
| -runtests | test1,test2,... | run one or more tests | |
| -step | stepname | record a step | requires :state and :status |
| -test-status | record the test status | requires :state and :status | |
| -setlog | logfilename | set the logfile name for a test | path is assumed to be relative to the test run directory |
| -set-toplog | logfilename | set the logfile name for the top test in an iterated test run | each sub test can have its own logfile set |
| -m | “comment” | sets a comment for the step, test or run | |
| :runname | a-zA-Z0-9_-+ | directory in which this run will be stored in the test run area | |
| :state | any value | Set the step or test state, this is stored in the state field in the steps or tests table respectively | For tests Megatest recognises “INCOMPLETE”, “COMPLETE” |
| :status | any value | Set the step or test status, this is stored in the status field in the steps or tests table respectively | For tests Megatest recognises “PASS”, “FAIL”, and “CHECK” |
| -list-runs | any value, % is wildcard | Respects -itempatt and -testpatt for filters | |
| -testpatt | any value, % is wildcard | ||
| -itempatt | any value, % is wildcard | ||
| -showkeys | Print the keys being used for this database | ||
| -force | Test will not re-run if in the “PASS”, “CHECK” or “KILLED”, using -force will force the run to be launched. | WARNING: The -force switch will bypass any “waiton” dependencies. | |
| -xterm | Launch an xterm instead of run the test. The xterm will have the environment that the test would see. | ||
| -remove-runs | Remove a run, test or subtest from the database and the disk. Cannot be undone. Requires -testpatt, -itempatt, :runname and all keys be specified. | ||
| Test helpers | |||
| -runstep | Used inside a test to run a step, record the start and end of the step and optionally analyze the output using logpro. | ||
| -logpro | If using logpro to asses the PASS/FAIL status of the step you specify the logpro file with this parameter. |
